EasyTrail® is a maintenance-free bathing ramp that makes swimming areas more accessible, safe, and inclusive. Developed in collaboration with the Disability Movement’s Idea & Knowledge Centre in Kronoberg, Sweden, it is designed to provide easy and secure access to the water for everyone – regardless of age or mobility.
More and more municipalities are choosing EasyTrail® to make their swimming areas accessible. The ramp’s design complies with the Swedish National Board of Housing, Building and Planning regulations (BFS 2011:5 – ALM2) and has been developed in close collaboration with accessibility consultant Maarit Lundwall. The result is a product that works in practice – both for users and for those responsible for maintaining the facility.

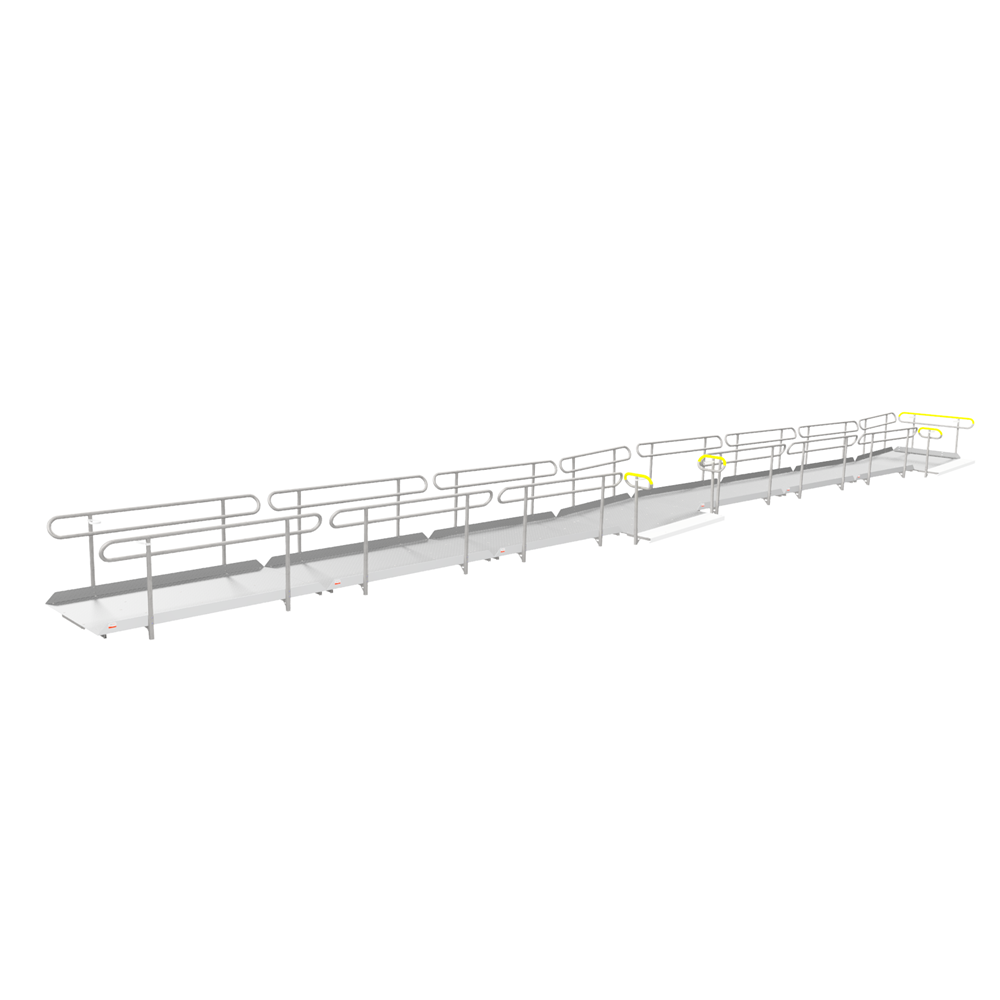

EasyTrail® consists of 2.5-meter sections that can be easily locked together without tools. The telescopic legs are adjusted from above and compensate for uneven bottoms, making installation quick and safe. When the swimming season is over, the ramp can be removed and stored on land.
The thoughtfully designed construction offers:
Low total cost
Long service life
Minimal maintenance
Every detail of EasyTrail® is designed to withstand many years of use in both freshwater and saltwater. The ramp sections are made of sturdy aluminum profiles with a slip-resistant surface and a robust construction for stability even under heavy loads. All components are modular, allowing the ramp to be extended or adapted to the site’s conditions. A 5-year warranty is included.
EasyTrail® is developed and manufactured in Värnamo by Floattech Sweden AB. Swedish production provides:
Fast delivery times
Good availability of spare parts
Support from planning to installation
For municipalities, this means a sustainable solution with low life-cycle costs – and a secure investment for the future.
EasyTrail® includes the following features according to Swedish National Board of Housing, Building and Planning regulations (ALM2):
Handrails at 700 mm and 900 mm height
Handrails free from fasteners
Contrasting handrails and deck surface at the exit point
120 mm high anti-slip edge
Mounting point for crutches and wheelchairs
Telescopic legs with correct slope 1:20 (5%), flat resting platforms with slope 1:50 (2%)
1.8 m wide resting platforms for wheelchair turning
Solid deck surface to keep out sand and mud
Slip-resistant 3 mm aluminum checker plate
EasyTrail® is used by municipalities, associations, and organizations across the country.
The ramp can be adapted for:
Lakes and seas
Accessible piers
Floating platforms
The system can easily be supplemented with handrails, resting platforms, and exits to the right or left.
Straight ramp: for gently sloping beaches. Often with a resting platform in the middle and one at the end.
Angled ramp: for locations where the water becomes deep quickly – the ramp then turns to the right or left.
Site selection: calm, sheltered environment with gently sloping water
Proximity to accessible toilets (HWC) and handicap parking
Pathway: at least 1 m wide, hard-surfaced
Maximum slope 1:20
Resting platforms on land: 1.8 × 1.8 m
Ramp and water depth:
Slope: 1:20 (5%)
Resting platform slope: 1:50 (2%)
Water depth: 95–100 cm at the end of the ramp
We offer:
Advice and drawings
Custom measurements and quotation documentation
Assistance with installation and procurement
Our goal is to enable more municipalities to provide safe and accessible swimming areas – regardless of the size of the location.
Examples of municipalities and sites using EasyTrail®:
Salem Municipality
Garnudden Nature Reserve
Köping Municipality
Stenö Camping
The ramps help increase accessibility at swimming areas.
Do you want to make your swimming area more accessible? Contact us for advice or a quote on EasyTrail®.
